Guangzhou Menzeh Machinery Parts Co., Ltd.
 |
| Tempat asal: | Guangzhou Cina |
| Nama merek: | MENZEH GEARS |
| Sertifikasi: | CE |
| Nomor model: | RV GM35VL |
| Kuantitas min Order: | 1 pc |
|---|---|
| Harga: | Negotiated |
| Kemasan rincian: | KOTAK, Kasus Kayu |
| Waktu pengiriman: | 1-3 Hari Kerja |
| Syarat-syarat pembayaran: | Western Union, T/T, L/C, ALI MEMBAYAR |
| Menyediakan kemampuan: | 500pcs per hari |
| Bagian nama: | Gear Assy | Nomor bagian: | RV GM35VL |
|---|---|---|---|
| Digunakan untuk: | RV GM35VL | Kondisi: | OEM Baru |
| Warrenty: | 3 bulan | Pengiriman: | Pengiriman DHL/ TNT/ UPS/ LAUT/ UDARA |
| Pelabuhan: | Huangpu Guangzhou | Setelah Garansi: | Dukungan teknis video Dukungan online Suku cadang |
| Cahaya Tinggi: | GM35VL Gear Assy,Gear Assy Dengan Poros |
||

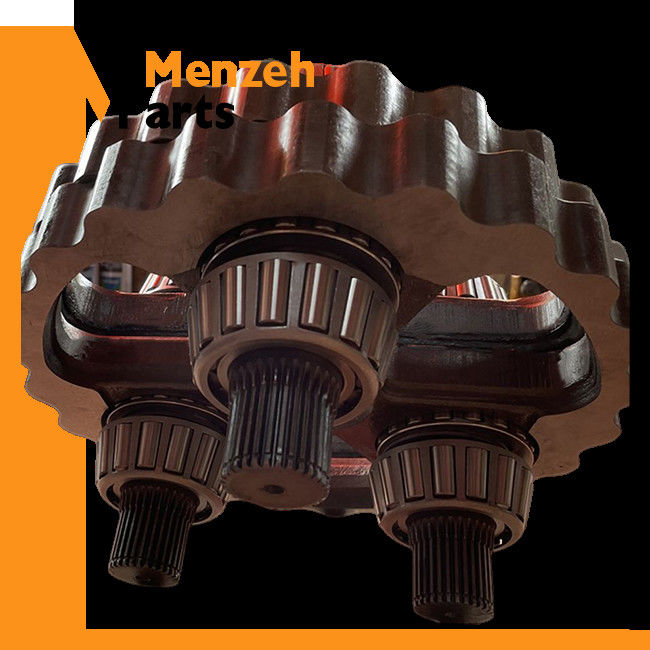

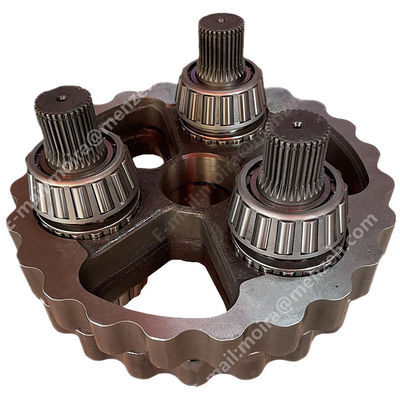

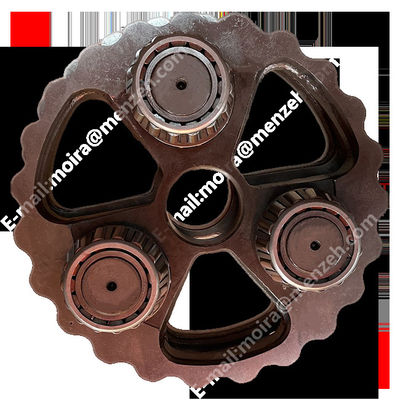

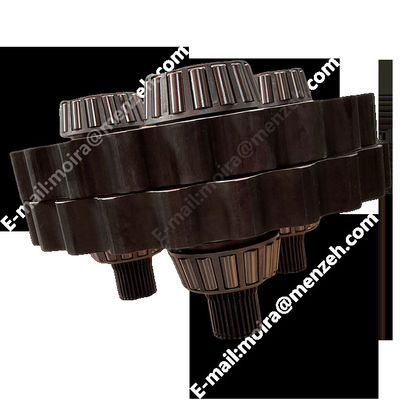

GM35VL RV Gear Assy Dengan Suku Cadang Poros Dan Bantalan Terapkan
| Bagian nama | Gigi |
| Bagian No. | GM35VL |
| Digunakan untuk | GM35VL |
| Warrenty | 3 bulan |
| Setelah Garansi | Dukungan teknis video Dukungan online Suku cadang gratis |
| Pos. | Bagian No | Jumlah | Nama bagian | Komentar |
| 1 | 2R-0524 | [2] | CONE-BEARING | |
| 2 | 2R-0525 | [2] | CUP-BEARING | |
| 3 | 4I-7576 | [14] | MESIN CUCI (THK 66,3X104X3-MM) | |
| 4 | 7M-8485 | [2] | SEAL-O-RING | |
| 5 | 7Y-0661 | [3] | SHAFT-PLANETARY | |
| 6 | 7Y-0662 | [4] | SHAFT-PLANETARY | |
| 7 | 199-4583 | [11] | BANTALAN SEBAGAI | |
| 8 | 7Y-0808 B | [1] | SHIM (THK 1,6 MM) | |
| 9 | 7Y-1469 | [1] | KOPEL | |
| 10 | 7Y-1470 | [1] | GEAR-SUN (21-GIGI) | |
| 11 | 7Y-1472 B | [1] | SHIM (THK 0,15-MM) | |
| 12 | 7Y-1473 B | [1] | SHIM (THK 0,3 MM) | |
| 13 | 7Y-1474 B | [1] | SHIM (THK 0,4 MM) | |
| 14 | 7Y-1475 B | [1] | SHIM (THK 0,5 MM) | |
| 15 | 7Y-1476 B | [1] | SHIM (THK 0,6-MM) | |
| 16 | 7Y-1477 B | [1] | SHIM (THK 0,7-MM) | |
| 17 | 7Y-1478 B | [1] | SHIM (THK 0,8 MM) | |
| 18 | 7Y-1479 B | [1] | SHIM (THK 1-MM) | |
| 19 | 7Y-1480 B | [1] | SHIM (THK 1,6 MM) | |
| 20 | 7Y-1482 | [1] | CARRIER-PLANETARY | |
| 21 | 7Y-1483 | [1] | GEAR-RING (63-GIGI) | |
| 22 | 7Y-1485 | [1] | CARRIER-PLANETARY | |
| 23 | 7Y-1487 | [1] | GEAR-RING (85-GIGI) | |
| 24 | 7Y-1488 | [1] | PEMBAWA SEBAGAI | |
| 7Y-0656 | [3] | SHAFT-PLANETARY | ||
| 25 | 7Y-1491 | [1] | GEAR-SUN (21-GIGI) | |
| 26 | 7Y-1493 | [1] | SPASI (8,7X50X14-MM THK) | |
| 27 | 7Y-1495 | [3] | GEAR-PLANETARY (29-GIGI) | |
| 28 | 7Y-1498 | [1] | MENUTUPI | |
| 29 | 7Y-1499 | [3] | GEAR-PLANETARY (20-GIGI) | |
| 30 | 7Y-1504 | [4] | GEAR-PLANETARY (20-GIGI) | |
| 31 | 7Y-5235 M | [20] | BAUT (M24X3X190-MM) | |
| 32 | 110-7217 | [2] | RING-PENAHAN | |
| 33 | 114-1541 | [6] | PIN-DOWEL | |
| 34 | 169-5559 | [1] | GEAR-SUN (26-GIGI) | |
| 35 | 199-4719 | [1] | GEAR-COUPLING | |
| 36 | 200-3489 | [1] | PERUMAHAN-MOTOR | |
| 37 | 200-3490 | [1] | HOUSING-GEAR | |
| 38 | 205-9025 | [1] | SEAL GP-DUO-CONE | |
| 205-9024 | [2] | RING-TORIC | ||
| 39 | 227-6048 | [12] | MESIN CUCI (THK 26X40X4-MM) | |
| 40 | 094-0584 | [6] | MESIN CUCI (40,3X72X1-MM THK) | |
| 41 | 199-4582 | [3] | BANTALAN SEBAGAI | |
| 42 | 095-0891 | [7] | PIN-SPRING | |
| 43 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 44 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 45 | 6V-8133 M | [12] | BAUT (M24X3X80-MM) | |
| 46 | 7Y-1484 | [1] | SPASI (191X221X8,5-MM THK) | |
| 47 | 7Y-1492 | [2] | SPASI (67X101.1X10-MM THK) | |
| 48 | 8C-5240 | [1] | SEAL-O-RING | |
| 49 | 8T-3957 M | [10] | KEPALA BOLT-SOKET (M12X1.75X30-MM) | |
| 50 | 8T-4167 | [20] | MESIN KERAS (26X44X4-MM THK) | |
| 51 | 8T-4240 | [3] | RING-PENAHAN | |
| 52 | 1U-8846 B | SEALANT-GASKET | ||
| B | GUNAKAN SESUAI KEBUTUHAN | |||
| M | BAGIAN METRIK | |||
