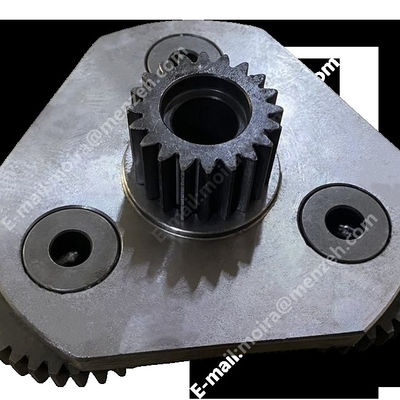

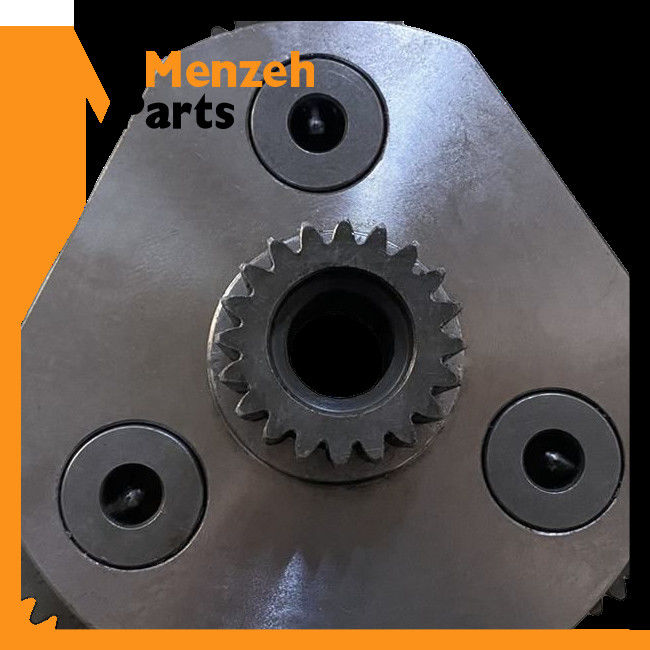

SK30UR 1nd Planetary Sun Gear Carrier Assy Travel Final Drive Gear Excavator

Detail produk:

Tempat asal:	Guangzhou Cina
Nama merek:	MENZEH GEARS
Sertifikasi:	CE
Nomor model:	SK30UR Planet ke-1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	Negotiated
Kemasan rincian:	KOTAK, Kasus Kayu
Waktu pengiriman:	1-3 Hari Kerja
Syarat-syarat pembayaran:	Western Union, T/T, L/C, ALI MEMBAYAR
Menyediakan kemampuan:	500pcs per hari

Kontak

Detil Deskripsi produk

Bagian nama:	Planet ke-1	Nomor bagian:	SK30UR
Digunakan untuk:	SK30UR	Kondisi:	OEM Baru
Warrenty:	3 bulan	Pengiriman:	Pengiriman DHL/ TNT/ UPS/ LAUT/ UDARA
Pelabuhan:	Huangpu Guangzhou	Setelah Garansi:	Dukungan teknis video Dukungan online Suku cadang
Cahaya Tinggi:	1nd Planetary Sun Gear Carrier Assy , SK30UR Carrier Assy

SK30UR 1nd Planetary Sun Gear Carrier Assy Travel Final Drive Gear Excavator

Bagian nama	Planet ke-1
Nomor Bagian	SK30UR
Digunakan untuk	SK30UR
Warrenty	3 bulan
Setelah Garansi	Dukungan teknis video Dukungan online Suku cadang gratis

Pos.	Bagian No	Jumlah	Nama bagian	Komentar
..	LC15V00023F1	[1]	MOTOR HIDROLIK	Majelis KOB, Termasuk.LC15V00026F1 -- Tidak Ditampilkan Diganti dengan nomor bagian: LC15V00023F2
..	LC15V00023F2R	[1]	MOTOR REMAN-HYD	KOB SK350-8 ACERA MARK 8 EXCAVATOR - TIER 3 ASN YC08U~ (NA) (10/06-), REMAN UNTUK BARU PN LC15V00023F1
..	LC15V00023F2C	[1]	INTI-MOTOR HIDROLIK	Nomor Pengembalian KOB
..	LC15V00026F1	[1]	MOTOR HIDROLIK	Motor Hidrolik KOB Digantikan oleh nomor bagian: LC15V00026F2
1	LC53D00007S018	[1]	PERUMAHAN	KOB
2	24100U1682S19	[2]	LAHER	KOB
3	LC53D00007S017	[1]	GIGI	CINCIN KOB
4	ZS23C18110	[25]	SEKRUP, Kepala Soket Hex, M18 x 110mm	KOB M18x2.50x110mm
5	24100U1743S24	[1]	SEGEL	KOB
6	24100U1682S20	[1]	SHIM	KOB
7	24100U1682S21	[2]	PENCUCI KUNCI	KOB
8	24100U1682S22	[1]	CINCIN	KOB
9	LC53D00007S011	[1]	PEMBAWA	KOB
10	LC15V00023S010	[3]	PERALATAN PLANET	KOB
11	LC53D00007S016	[6]	MESIN CUCI	KOB DORONG
12	LC15V00023S012	[3]	BANTALAN	JARUM KOB
13	LC53D00007S012	[3]	PEMBAWA	KOB
14	ZP26D10050	[3]	PIN	KOB MUSIM SEMI
15	LC15V00023S015	[1]	GIGI	KOB SUN
16	LC53D00007S002	[1]	PEMBAWA	KOB
17	LC15V00023S017	[3]	PERALATAN PLANET	KOB
18	LC53D00007S005	[6]	MESIN CUCI	KOB DORONG
19	LC15V00023S019	[3]	BANTALAN	JARUM KOB
20	LC53D00007S003	[3]	PIN	KOB
21	ZP26D06036	[3]	PIN	KOB Roll -- Panjang OD 06 x 36mm
22	LC15V00023S022	[1]	GIGI	KOB SUN
23	LQ15V00005S008	[1]	PIRING	KOB
24	LC15V00023S024	[1]	MENUTUPI	KOB
25	ZS28C10030	[18]	SEKRUP, Kepala Soket Hex, M10 x 30mm	KOB M10x1.50x30mm
26	YR30V00001S116	[2]	STEKER	KOB
27	ZD12P02400	[2]	O-RING	KOB ID 23,70 ± 0,24 x OD 30mm
28	LC15V00023S028	[1]	KASUS	KOB
29	LC15V00023S029	[1]	STEKER	KOB
30	2441U1040S27	[1]	CINCIN	KOB
31	2441U1040S19	[1]	MENUTUPI	KOB
32	2436U1749S17	[1]	STEKER	KOB
33	NSS	[1]	TIDAK DIJUAL TERPISAH	KON PISTON
34	NSS	[1]	TIDAK DIJUAL TERPISAH	CON SEAL, PISTON
35	LC15V00023S035	[1]	BOLA	KOB
36	2441U1040S9	[1]	BATANG	KOB
37	2441U1040S31	[1]	BANTALAN POROS	KOB
38	NSS	[2]	TIDAK DIJUAL TERPISAH	CON PIVOT
39	NSS	[1]	TIDAK DIJUAL TERPISAH	CON PLATE, SEPATU
40	LC15V00023S040	[1]	MEMBLOKIR	SILINDER KOB
41	2441U1030S29	[9]	MUSIM SEMI	KOB
42	LC15V00023S042	[1]	PEMEGANG	KOB
43	LC15V00021S024	[1]	BOLA BERSAMA	KOB
44	LC15V00021S004	[1]	GAJI	SEPATU KOB
45	GK15V00003S014	[9]	PISTON	KOB ASSY
46	2441U1040S7	[7]	PIRING	SEPARATOR KOB
47	2441U1040S5	[6]	PIRING	KOB
48	2441U1040S6	[1]	PISTON	KOB
49	LS15V00004S052	[1]	O-RING	KOB O-RING
50	LS15V00004S053	[1]	O-RING	KOB
51	LC15V00023S051	[1]	MENUTUPI	KOB
52	2436U1427S25	[14]	STEKER	KOB
53	LC15V00023S053	[1]	KUMPARAN	KOB
54	LC15V00023S054	[2]	KURSI MUSIM SEMI	KOB
55	YN15V00017S053	[2]	MUSIM SEMI	KOB
56	LC15V00023S056	[2]	MENUTUPI	KOB
57	ZD12G04000	[2]	O-RING,39.40mm ID x 45.60mm OD x 3.10mm	KOB ID 39,40 ± 0,37 x OD 45mm
58	LC15V00023S058	[1]	KUMPARAN	KOB
59	2436R874S6	[1]	PIN	KOB
60	2436R874S5	[1]	KURSI MUSIM SEMI	KOB
61	2436R874S7	[1]	MUSIM SEMI	KOB
62	LC15V00023S062	[1]	STEKER	KOB
63	ZD12P01400	[2]	O-RING	KOB ID 13,80 ± 0,19 x OD 18mm
64	2436R874S3	[1]	SAMBUNGAN FLEKSIBEL	KOB
65	2436U1317S13	[2]	STEKER	KOB
66	ZD12P01100	[2]	O-RING	KOB ID 10.8mm x OD 13.2mm
67	LC15V00023S067	[2]	PEMBATASAN	KOB
68	LC15V00023S068	[2]	MUSIM SEMI	KOB
69	YN15V00017S038	[5]	STEKER	KOB
70	ZD12P00800	[5]	O-RING, 1.9mm Thk x 7.8mm ID, 90 Duro	KOB ID 7.8mm x OD 9.7mm
71	YN15V00017S017	[3]	PERIKSA KATUP	KOB
72	YN15V00017S026	[3]	MUSIM SEMI	KOB
73	GN15V00010S024	[2]	PEMBATASAN	KOB
74	ZD12P01250	[1]	O-RING	KOB ID 12.3mm X OD 14.7mm
75	GN15V00010S025	[1]	PEMBATASAN	KOB
76	ZD12P01500	[1]	O-RING	KOB ID 14.80 ± 0.20 x OD 19mm
77	2441U1040S40	[1]	O-RING	KOB
78	2441U1040S32	[1]	BANTALAN POROS	KOB
79	LS15V00014S033	[2]	SHIM	KOB Digantikan oleh nomor bagian: 2441U1040S34
80	2441U1040S35	[1]	PIN	KOB
81	LC15V00021S008	[1]	PIRING	KATUP KOB
82	YN15V00003S030	[10]	MUSIM SEMI	KOB
83	ZS23C18050	[10]	SEKRUP, Kepala Soket Hex, M18 x 50mm	KOB M18x2.50x50mm
84	LC22V00006F1	[2]	KATUP	KOB ASSY, OVERLOAD RELIEF LIHAT (HC385)
85	2441U1040S10	[1]	SAMBUNGAN KOPLING	KOB
86	ZR26X04000	[1]	CINCIN	Penahan KOB -- ID 40 x OD 43,5 x Th 1,8mm
87	YR30V00001S115	[2]	STEKER	KOB
88	ZD12P01800	[2]	O-RING	KOB ID 17.8mm x OD 20.2mm
K.	LC15V00023R100	[1]	KIT	Ref SM 33x1 34x1
K.	LC15V00023R200	[1]	KIT	Ref SM 38x2 39x1
K.	LC15V00023R300	[1]	KIT	Ref SM 46x7 47x6
