Guangzhou Menzeh Machinery Parts Co., Ltd.
 |
| Tempat asal: | CINA |
| Nama merek: | MENZEH GEARS |
| Sertifikasi: | CE |
| Nomor model: | CAT320B E320C E320D |
| Kuantitas min Order: | 1 PC |
|---|---|
| Harga: | Negotiated |
| Kemasan rincian: | KOTAK, Kotak Kayu |
| Waktu pengiriman: | 2 Hari Kerja |
| Syarat-syarat pembayaran: | Western Union, T/T, ALI MEMBAYAR |
| Menyediakan kemampuan: | 500 pcs per Hari |
| Bagian nama: | Gearbox perjalanan | Nomor Bagian: | 7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 |
|---|---|---|---|
| Digunakan untuk: | CAT320B E320C E320D | kondisi: | Semua OEM Baru |
| Warrenty: | 6 bulan | Waktu pengiriman: | 1-3 Hari |
| Cahaya Tinggi: | Gearbox Perjalanan CAT320B,Gearbox Perjalanan 296-6299,Gearbox Perjalanan 353-0611 |
||

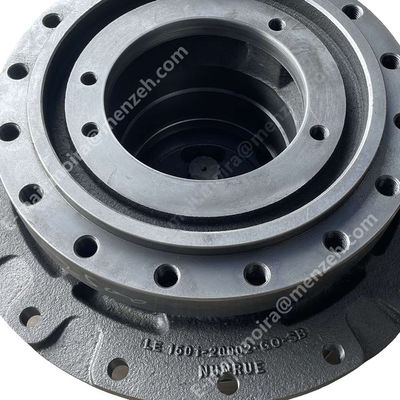

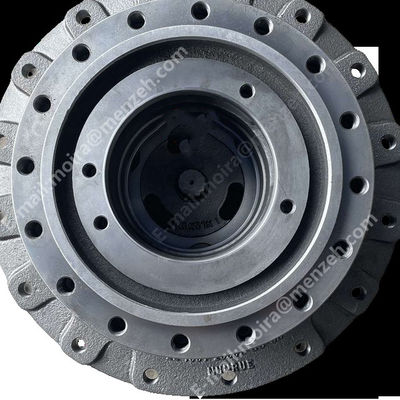

7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Gearbox Perjalanan
| Bagian nama | Gearbox Traval |
| Bagian No. | 7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 |
| Digunakan untuk | CAT320B E320C E320D |
| Warrenty | 6 bulan |
| Setelah Garansi | Dukungan teknis video Dukungan online Suku cadang gratis |
| Pos. | Bagian No | jumlah | Nama bagian |
| 1. | 6I-6583 | [1] | GEAR-SUN (13-GIGI) |
| 2. | 6I-6585 | [3] | GEAR-PLANETARY (44-GIGI) |
| 3. | 7Y-0223 | [3] | SHAFT-PLANETARY |
| 4. | 7Y-0225 | [3] | SHAFT-PLANETARY |
| 5. | 7Y-1426 | [1] | MENUTUPI |
| 6. | 7Y-1430 | [1] | GEAR-SUN (17-GIGI) |
| 7. | 7Y-1431 | [3] | GEAR-PLANETARY (30-GIGI) |
| 8. | 7Y-1432 | [1] | PEMBAWA |
| 9. | 7Y-1433 | [1] | PEMBAWA |
| 10. | 7Y-1558 | [1] | SPACER (90X119.6X7.5-MM THK) |
| 11. | 094-0580 | [1] | PIRING (10-MM THK) |
| 12. | 094-0611 | [6] | CUCI (47.3X76X1-MM THK) |
| 13. | 094-1528 | [6] | CUCI (53X84X1-MM THK) |
| 14. | 095-0891 | [6] | PIN-SPRING |
| 15. | 096-1773B | [1] | SHIM (0,15-MM THK) |
| 096-1774B | [1] | SHIM (0,3-MM THK) | |
| 096-1775B | [1] | SHIM (0,4-MM THK) | |
| 096-1776B | [1] | SHIM (0,5-MM THK) | |
| 096-1777B | [1] | SHIM (0.6-MM THK) | |
| 096-1778B | [1] | SHIM (0,7-MM THK) | |
| 096-1779B | [1] | SHIM (0.8-MM THK) | |
| 096-1780B | [1] | SHIM (1-MM THK) | |
| 096-1781B | [1] | SHIM (1.6-MM THK) | |
| 24. | 114-1539 | [6] | PIN-DOWEL |
| 25. | 148-4715 | [1] | GEAR-COUPLING (55-GIGI) |
| 26. | 174-4874 | [1] | SEAL GP-DUO-CONE |
| 27. | 191-3235 | [1] | PERUMAHAN |
| 28. | 227-6034M | [14] | KEPALA FLANGE BAUT (M16X2X60-MM) |
| 29. | 296-6220 | [2] | LAHER |
| 30. | 296-6268 | [3] | BANTALAN AS-ROLLER |
| 31. | 296-6269 | [6] | BEARING-ROLLER |
| 32. | 296-6300kamu | [1] | GEAR GP-TRANSFER |
| 33. | 353-0612 | [1] | PERUMAHAN-MOTOR |
| 34. | 095-1270M | [2] | SETSCREW-SOCKET (M12X1.75X30-MM) |
| 35. | 3E-2338 | [2] | PLUG-PIPE |
| 36. | 6D-0692 | [1] | SEAL-O-RING |
| 37. | 7M-8485 | [2] | SEAL-O-RING |
| 38. | 453-4137 | [16] | BAUT (M20X2.5X180-MM) |
| 39. | 7Y-1434 | [1] | SPACER (40X69.5X6-MM THK) |
| 40. | 451-2176 | [16] | CUCI-KERAS (22X35X3.5-MM THK) |
