Guangzhou Menzeh Machinery Parts Co., Ltd.
 |
| Tempat asal: | GUANGZHOU CINA |
| Nama merek: | MENZEH GEARS |
| Sertifikasi: | CE |
| Nomor model: | XKAQ-00010 31Q5-12320 XKAQ-00073 |
| Kuantitas min Order: | 1 buah |
|---|---|
| Harga: | Negotiated |
| Kemasan rincian: | Kotak Kayu, Kotak |
| Waktu pengiriman: | 1-3 Hari kerja |
| Syarat-syarat pembayaran: | Western Union, T/T, L/C, ALIPAY |
| Menyediakan kemampuan: | 1000 pcs per Hari |

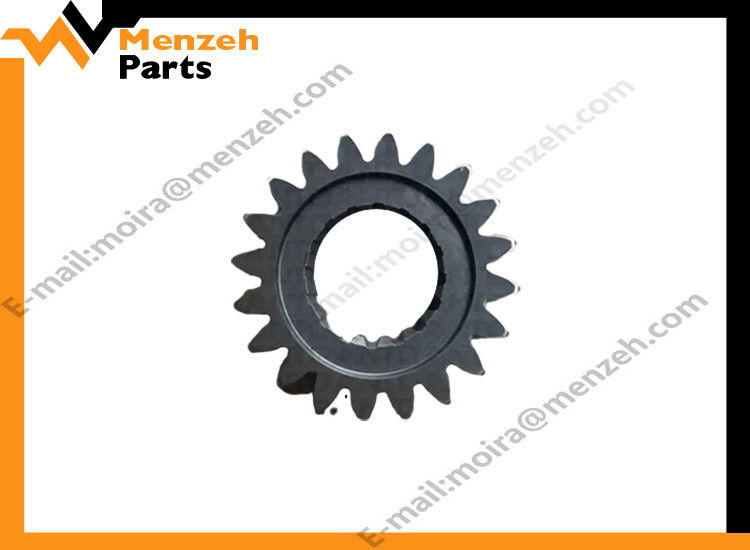

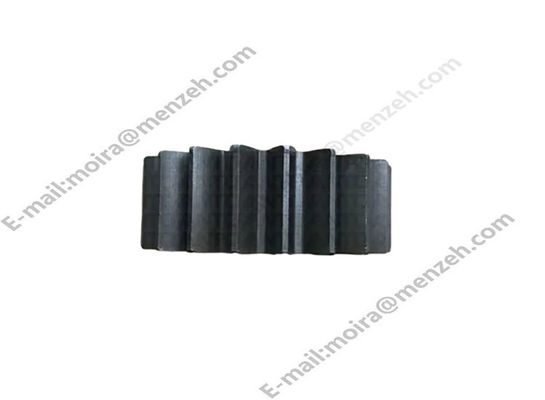

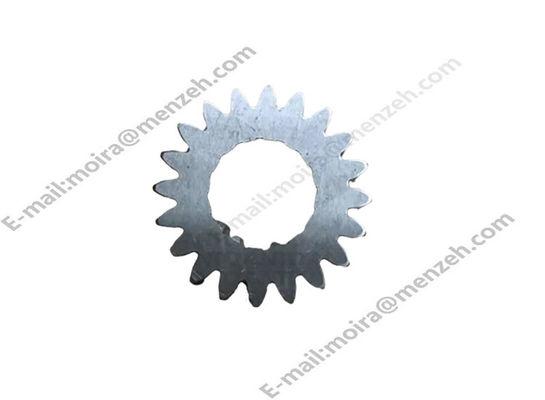

| Bagian nama: | gigi matahari | Nomor Bagian: | XKAQ-00010 31Q5-12320 XKAQ-00073 |
|---|---|---|---|
| Digunakan untuk: | R210 R220 R160LC7 | kondisi: | OEM, Purna Jual |
| Warrenty: | 6 bulan, 1 Tahun | Pengiriman: | Pengiriman Ekspres / LAUT / UDARA |
| Pelabuhan: | Huangpu, Guangzhou | Bobot: | 3 kg dengan Packing |
| Cahaya Tinggi: | MENZEH Excavator Swing Gear,31Q5-12320 Excavator Swing Gear,R220 XKAQ-00073 |
||
| Bagian nama | gigi matahari |
| Nomor Bagian | XKAQ-00010 31Q5-12320 XKAQ-00073 |
| model | R210 R220 R160LC7 |
| Aplikasi | Suku Cadang yang Diperbaiki Excavator |
| Asli | Guangzhou, Cina |
| Waktu pengiriman | 1-2 hari Setelah Konfirmasi Pesanan |
| pos. | Bagian No | jumlah | Nama bagian | Komentar |
| N*. | @ | [1] | SWING MOTOR ASSY | *-1, *-2 |
| *-1. | 31Q5-10160 | [1] | UNIT MOTOR ayun | |
| *-1. | 31Q5-10160AR | [1] | UNIT MOTOR ayun | |
| 1. | XKAY-01394 | [1] | TUBUH | |
| 1. | XKAY-02153 | [1] | TUBUH | |
| K2. | XKAY-00521 | [1] | SEAL-OIL | |
| 3. | XKAY-00522 | [1] | BEARING-ROLLER | |
| 4. | XKAY-00523 | [1] | RING-SNAP | |
| 5. | XKAY-00524 | [1] | BATANG | |
| 6. | XKAY-00525 | [1] | BOS | |
| 7. | XKAY-00526 | [1] | RING-STOP | |
| 8. | XKAY-00625 | [1] | PIN | |
| 9. | XKAY-00527 | [1] | PLATE-SHOE | |
| SEBUAH. | XKAY-00528 | [1] | KIT ROTARY | |
| A A. | XKAY-00529 | [1] | KIT BLOK SILINDER | |
| N10. | XKAY-01511 | [1] | BLOK-SILINDER | |
| 11. | XKAY-00531 | [9] | MUSIM SEMI | |
| 24. | XKAY-01512 | [1] | PLATE-VALVE | |
| AB. | XKAY-00532 | [1] | KIT RETAINER | |
| 12. | XKAY-00533 | [1] | PANDUAN-BOLA | |
| 13. | XKAY-00534 | [1] | PELAT-SET | |
| AC. | XKAY-00535 | [1] | KIT PISTON | |
| N14. | XKAY-01513 | [9] | PISTON ASSY | |
| 15. | XKAY-00537 | [3] | GESER PIRING | |
| 16. | XKAY-00538 | [3] | PIRING | |
| 17. | XKAY-00632 | [1] | REM PISTON | |
| K18. | XKAY-00468 | [1] | O-RING | |
| K19. | XKAY-00540 | [2] | O-RING | |
| 20. | XKAY-00541 | [20] | MUSIM SEMI | |
| 21. | XKAY-01514 | [1] | PENUTUP-BELAKANG | |
| 22. | XKAY-00543 | [1] | BEARING-JARUM | |
| 23. | XKAY-00382 | [2] | PIN | |
| 25. | XKAY-00546 | [4] | BOLT-WRENCH | |
| 26. | XKAY-00309 | [2] | STEKER | |
| K27. | XKAY-00141 | [2] | RING-BACK UP | |
| K28. | XKAY-00310 | [2] | O-RING | |
| 29. | XKAY-00311 | [2] | MUSIM SEMI | |
| 30. | XKAY-00312 | [2] | MEMERIKSA | |
| 31. | XKAY-00313 | [2] | ASSY KATUP PELINDUNG | |
| 32. | XKAY-00314 | [2] | VLV ASSY-TANPA REAKSI | |
| 33. | XKAY-01470 | [1] | VALVE ASSY-TIME DELAY | |
| 34. | XKAY-00149 | [3] | BOLT-WRENCH | |
| 35. | XKAY-00150 | [1] | STEKER | |
| K36. | XKAY-00151 | [3] | O-RING | |
| 37. | XKAY-00140 | [1] | STEKER | |
| 38. | XKAY-00975 | [1] | STEKER | |
| 39. | XKAY-00548 | [1] | STEKER | |
| 40. | XKAY-01515 | [1] | PAPAN NAMA | |
| 41. | XKAY-00277 | [2] | MEMUSATKAN | |
| 42. | XKAY-01986 | [1] | TINGKAT UKURAN | |
| 42-1. | XKAY-01988 | [1] | STEKER | |
| 43. | XKAY-00322 | [2] | STEKER | |
| K44. | XKAY-00324 | [2] | O-RING | |
| K45. | XKAY-00247 | [2] | O-RING | |
| K46. | XKAY-00605 | [2] | RING-BACK UP | |
| *-2. | @ | [1] | GIGI PENGURANGAN SWING | LIHAT 4110 |
| K | XKAY-01401 | [1] | SEAL KIT | LIHAT ILUSTRASI |
| N. | @ | [AR] | BAGIAN TIDAK DISEDIAKAN |
